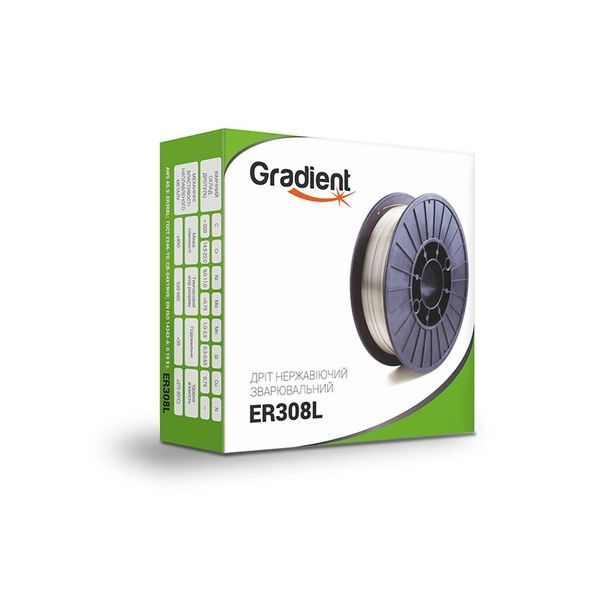

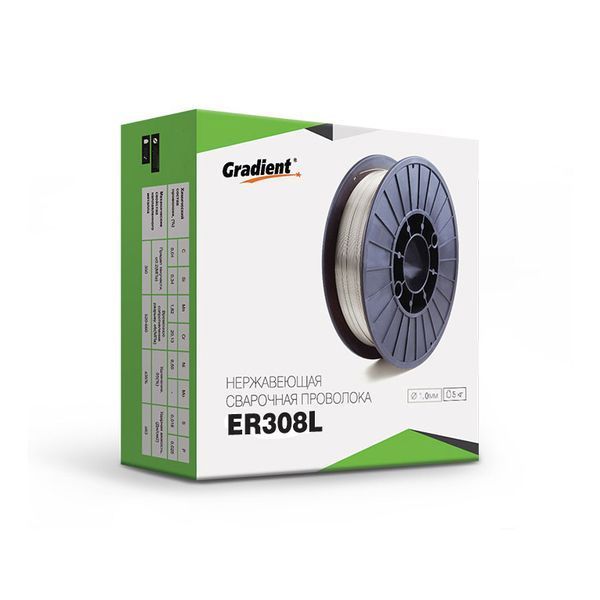

Stainless steel wire GRADIENT ER308L Ø1.0 mm (5 kg) D200

• resistance to corrosion processes that guarantees the durability of the connection • stability in thermal action • environmental safety, which is confirmed by the sanitary and epidemiological service and creates the possibility of use in medicine and food industry ER308L is used for Mig/Mag Welding with unstable stainless steels such as types 301, 302, 304, 305, 308. This material is the most popular among stainless steels that are used to use general purpose, where corrosion conditions are moderate. The ER308/ER308L brand is used in mechanical engineering, oil, chemical and food, for the manufacture of pipelines, containers, boilers and more. It is used for welding surfaces of corrosion-resistant steels of the above brands. The wire is used for welding stainless steels with a chromium content of more than 18% and nickel more than 8% of type 08x18H10, 12x18H9T, 12x18n10T, 08x18n10T10T, 12x18n9TL, 08x18n12. The presence of silicon (Si) provides high quality of the weld and its high resistance against the manifestation of intercrystalline corrosion. The minimum carbon content reduces the risk of intercrystalline corrosion (ICC). EN ISO 12072: • g 19 9 l Brand AWS A5.9: • ER308l DSTU Mark (GOST) 2246-70: • SV-04x19H9 Certificates: • AWS (American Welding Association); • CE (Certificate of the European Union); • CCS (Certificate of Chinese Standardization Organization); • DB (certificate of German transport industry); • DNV-GL (classification certificate of Norway); • Lloyd (Certificate of Marine Register Lloyd, UK); • CWB (Certificate of Canadian Welding Society); • TUV (Certificate of the European Technical Supervision of Products); • UkrSEPRO (document of certification of products in the territory of Ukraine) Protective environment: • ar (argon) Recommended current and polarity: • DC (DC) direct polarity (a wire burner connected to "-") Packaging: • On plastic coils D200 • Coil / Film + Silicagel / Cardboard Box The external diameter of the coil: • 200 mm Landing diameter of the coil: • 53 mm The chemical composition of the wire: • C (carbon) <0.03 % • Cr (chromium) 14.5 - 22.0 % • Ni (nickel) 9.0 - 11.0 % • mo (molybdenum) <0.75 % • Mn (manganese) 1.0 - 2.5 % • Si (silicon) 0.3-0.55 % • Cu (copper) <0.75 % mechanical properties of the surfacing metal: • the border of fluidity> = 400 MPa; • Relative extension <35 % • gap strength> = 520-660 MPa; • shock viscosity> = 27 J/cm2 (-30o C) Recommended welding parameters: AR+ 1 ~ 2 % CO2 0.8 mm-40-120 A / 15-20 V 1.0 mm-80-160 A / 16-22 V 1.2 mm-100-210 A / 17-22 V AR+ 1 ~ 2% O2 0.8 mm-160-210 A / 24-28 V 1.0 mm-180-280 A / 24-30 V 1.2 mm-200-300 A / 24-30 V WARNING! During welding work it is recommended to use visual protection (protective screen, protective masks, glasses) and protective clothing.
