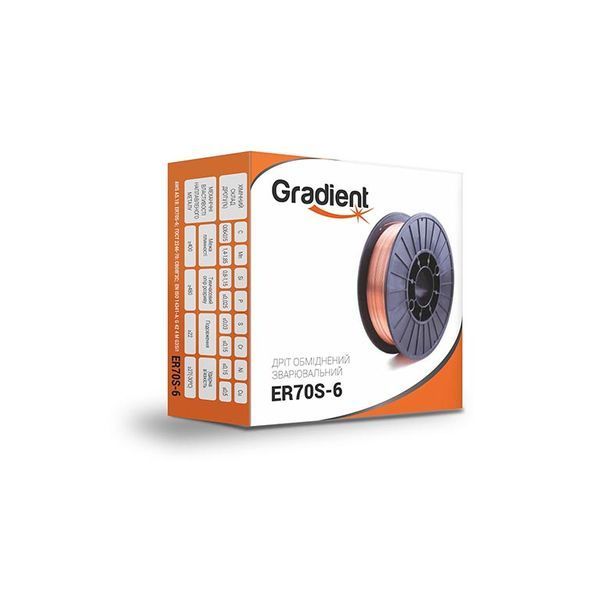

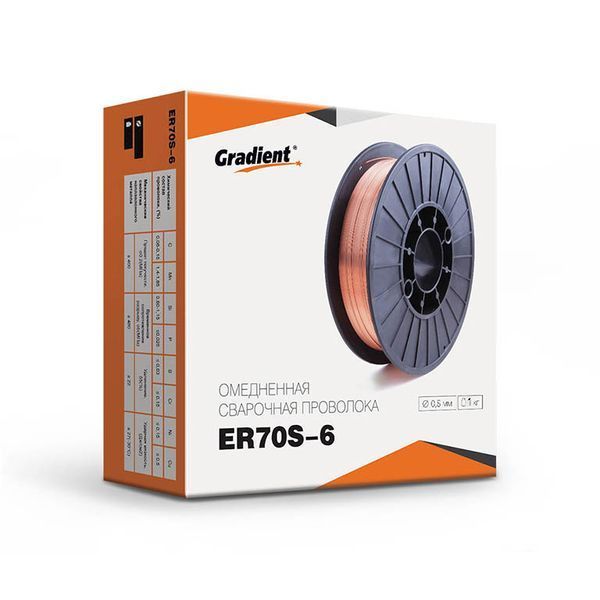

Copper-coated welding wire GRADIENT G3Si1 Ø0.6 mm (1 kg) D100

• Good conductivity due to a rooted coating • a row of winding on a coil • calibrated diameter of wire along the entire length • Low splashing • Products are certified by UkrSEPRO • High welding characteristics A solid welding wire of solid cross section has a wide range of use for electrical welding of low -alloy and low carbon steels of different thickness and in different geometric docking variants. Designed for semi -automatic and automatic welding. A homogeneous thin layer of copper coating increases the electrical conductivity and resistance of the wire to corrosion. EN ISO 14341-A: G3si1 Brand AWS A5.18: ER70S-6 DSTU Mark (GOST) 2246-70: St.08g2s-o Certificates: AWS (American Welding Association) CE (European Union Certificate) CCS (Certificate of Chinese Standardization Organization) DB (German Transport Certificate) DNV-GL (Norway Certificate) Lloyd (Certificate of Marine Register Lloyd, UK) Cwb (Certificate of Canadian Welding Society) TUV (Certificate of European Technical Supervision of Product Supervision) UkrSEPRO (document of certification of products in the territory of Ukraine) Protective environment: Ar (argon) AR + CO2 (argon + carbon dioxide) CO2 (carbon dioxide) Recommended current and polarity: DC (DC) reverse polarity (a wire burner is connected to "+") - for welding of thin -walled metal products DC (DC) direct polarity (a wire burner is connected to " -") - for boiling and surfacing of metal Packaging: on plastic coils D100 Coil / Film + Silicagel / Cardboard Box The external diameter of the coil: 100 mm Landing diameter of the coil: 16 mm Mechanical properties of the surfacing metal: the border of fluidity> = 400 MPa; relative elongation> = 22 %; rupture strength> = 480 MPa; Strike viscosity> = 27 J/cm2 (-30*s) Recommended Wire welding parameters Ø0.6 mm: Current (a) 95-125 Arc tension (c) 19-20 Wire Flow rate (m/h) 150-220 Protective gas costs (l/min) 6-7 Electrode departure (mm) 6-10 WARNING! During welding work it is recommended to use visual protection (protective screen, protective masks, glasses) and protective clothing. Do not contact the welding wire with a moist or oil surface, as this can cause unstable arc discharge and reduce the quality of welding. Before starting welding work, make sure that the welding equipment is properly set up and select the optimal welding parameters according to the material characteristics. In case of any deviations, malfunctions or issues regarding the use of a packed welding wire, consult a qualified specialist or manufacturer for additional information and consultations. Always follow the safety rules and use the equipment according to the instructions and recommendations to ensure safe and efficient welding.
